4K HDMI Fiber Extender with KVM and RS232 Professional Zero-Latency HDMI Fiber Optic Extender 4K@30Hz HDMI over Single-Mode Fiber Extender

Name: 4K HDMI Fiber Extender with KVM and RS232 Professional ZeroLatency HDMI Fiber Optic Extender 4K30Hz HDMI over SingleMode Fiber Extender
Brand: Bitvisus
Price: 1 USD

China 4K HDMI Fiber Extender with KVM and RS232 Professional Zero-Latency HDMI Fiber Optic Extender 4K@30Hz HDMI over Single-Mode Fiber Extender wholesale

Brand Name : Bitvisus

Model Number : BIT-Ex-Fib-IP-4K-KVM

Certification : FCC

Place of Origin : China

MOQ : 1

Price : Communication

Payment Terms : L/C,D/A,D/P,Western Union,T/T

Supply Ability : 100-40DAY

Delivery Time : 7DAY

Packaging Details : Paper box

Transmitter ( TX) : HDMI 1.4 (≤ 5 m) , IR, RS232 signal

Receiver ( RX) : HDMI 1.4 (≤ 5 m) , IR, RS232 signal

Supported resolution : 4K30Hz is backward compatible with standard resolutions

Signal format : Support common resolutions under various input signal formats ; support common signal formats of VESA and HDTV

color space : Support RGB444 ; YUV color space

Transmission distance : 10KM

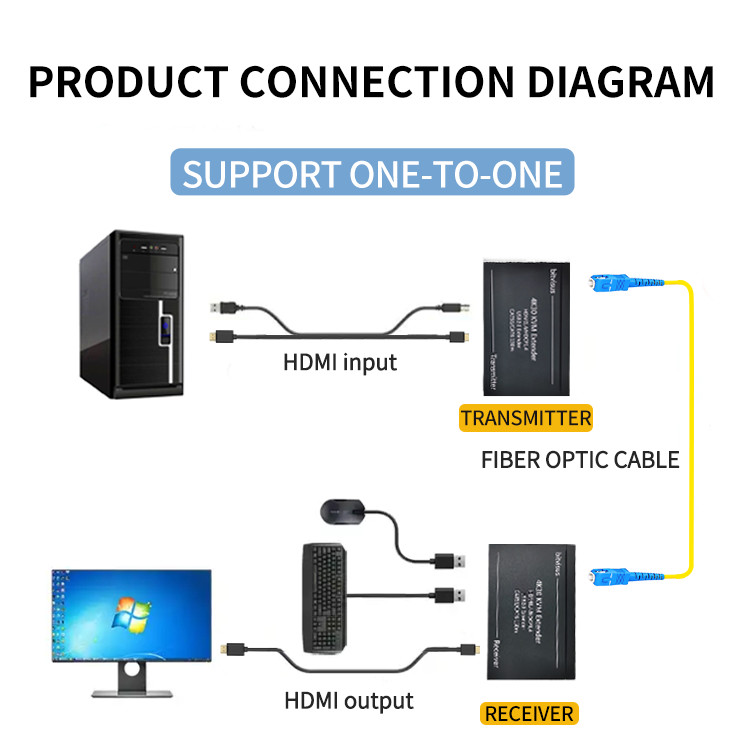

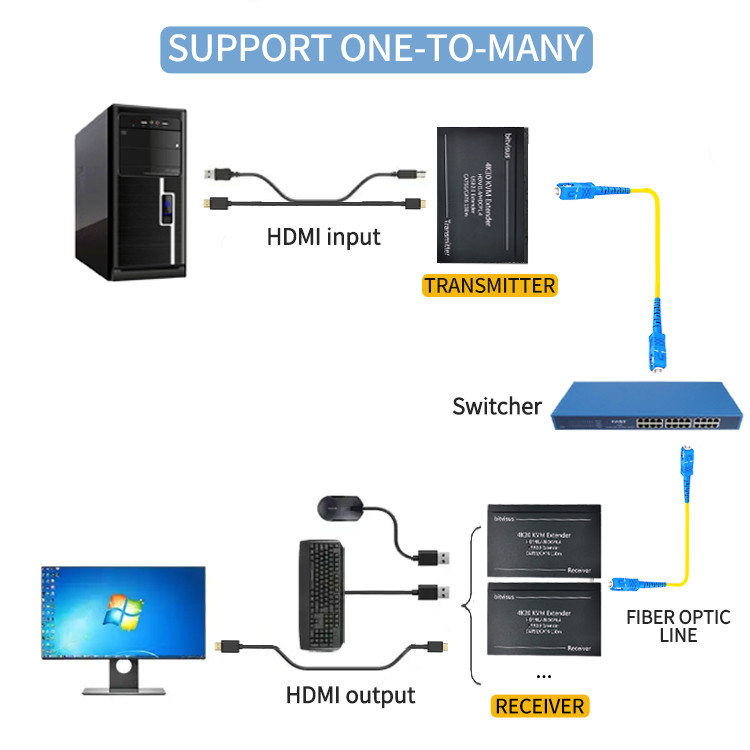

through the switch : Support one-to-one, one-to-many ( up to 32 ) optional (PS: All-gigabit smart switch, supports port MAC address binding, each port requires 800MBPS of bandwidth, and the port is not recommended to be full)

EDID learning : support

KVM : USB 2.0 , keyboard and mouse, U disk, radar, infrared touch, printer, etc.

CEC : support

RS232 : Two-way RS232 transparent transmission

Remote wake up : support

3D : support

Interface Protocol : HDMI1.4, HDCP 1.4 compatible with DVI1.0, VGA

OEM : support

power supply : DC 12V 2A

size : 105*76*27mm

After-sales service : 3 year warranty

Contact Now

Product Overview

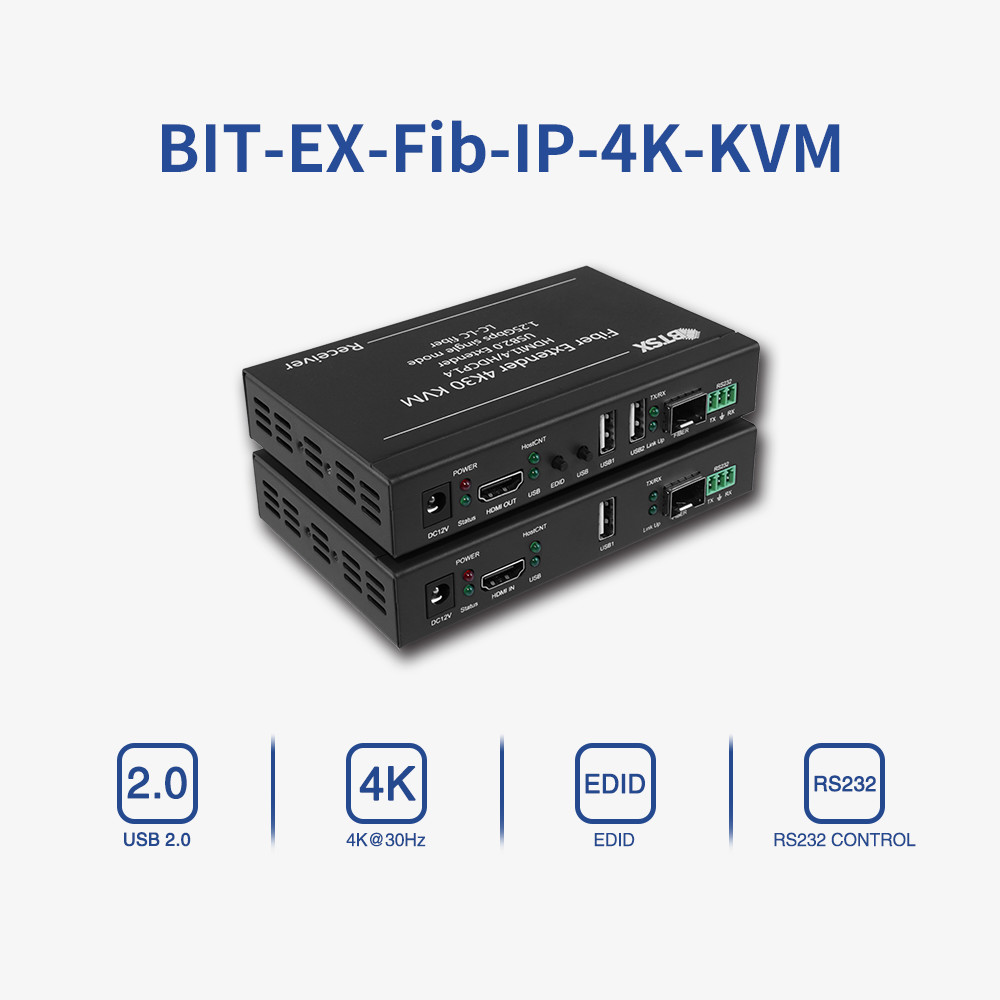

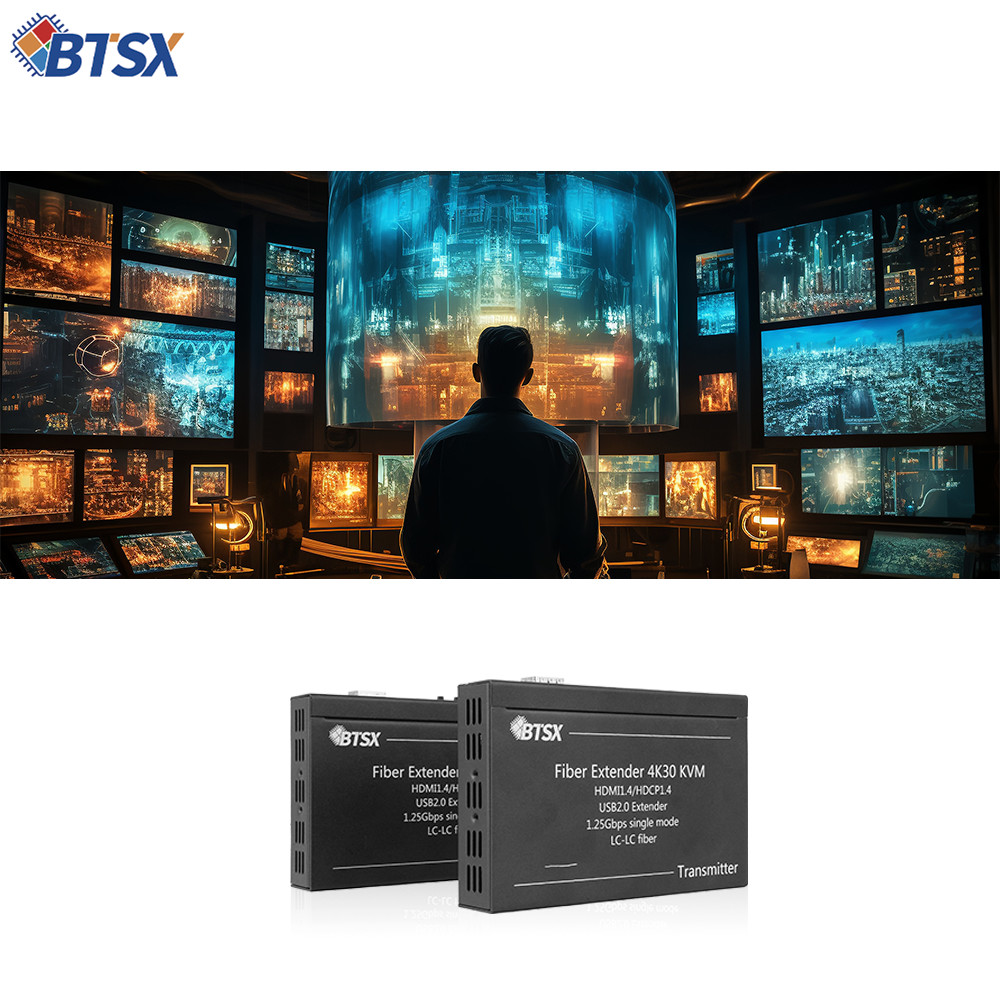

The BIT-Ex-Fib-IP-4K-KVM is a professional-grade HDMI fiber optic extender designed for zero-latency, uncompressed 4K@30Hz video transmission over distances up to 30KM. Engineered with industrial durability and advanced features like KVM, RS232, and EDID learning, it is ideal for demanding AV environments such as control rooms, stadiums, and broadcast studios.

Key Features

4K Ultra HD: Supports resolutions up to 3840x2160@30Hz with full RGB/YUV444 color depth.
Zero Latency: Uncompressed video ensures real-time performance for critical applications.
KVM over Fiber: USB 2.0 ports for keyboard, mouse, and peripheral control up to 10KM.
Bidirectional RS232 & IR: Integrate with AV control systems for seamless operation.

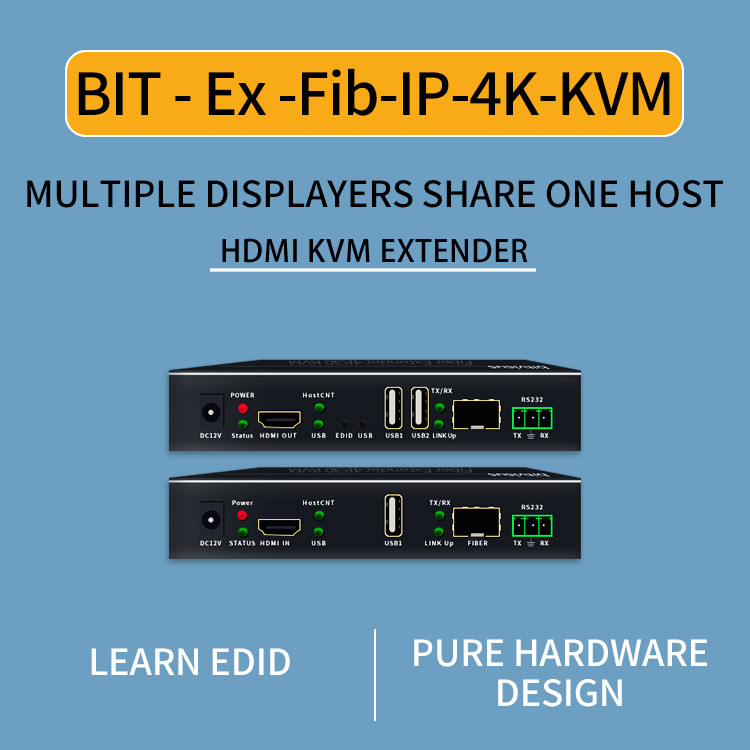

EDID Management: Auto-learn display EDID for plug-and-play compatibility.
Industrial Design: Operates in extreme temperatures (-25°C to 55°C) with robust EMI protection.

Technical Specifications

Input/Output: HDMI 1.4, LC single-mode fiber.
Transmission Distance: Up to 30KM (single-mode fiber).
Power Supply: DC 12V/2A (included).
Dimensions: 105x76x27mm (compact rack-mountable design).
Compliance: HDCP 1.4, HDMI 1.4, CE/FCC certified.

Applications

Control Rooms: Multi-screen monitoring with KVM control.
Digital Signage: 4K advertising displays in malls, airports, and retail.
Broadcast: Live 4K video feeds for studios and OB trucks.
Military: Secure AV communication in command centers.
Education: Interactive smart boards and lecture halls.

Package Contents

Transmitter (TX) and Receiver (RX) units.
12V/2A power adapters (x2).
LC-LC single-mode fiber modules (x2).
USB-A to USB-B cable.
User manual, warranty card, and certification.

Why Choose Us?

1-Year Warranty: Reliable performance with dedicated support.
OEM Services: Custom branding and feature modifications.
Global Shipping: DHL/FedEx options with fast delivery.

Support & Downloads

Installation guides, firmware updates, and technical FAQs available on our website.
24/7 customer service via email, live chat, and phone.
